MCD Forming Tool

MCD Forming Tool

MCD Forming Tool

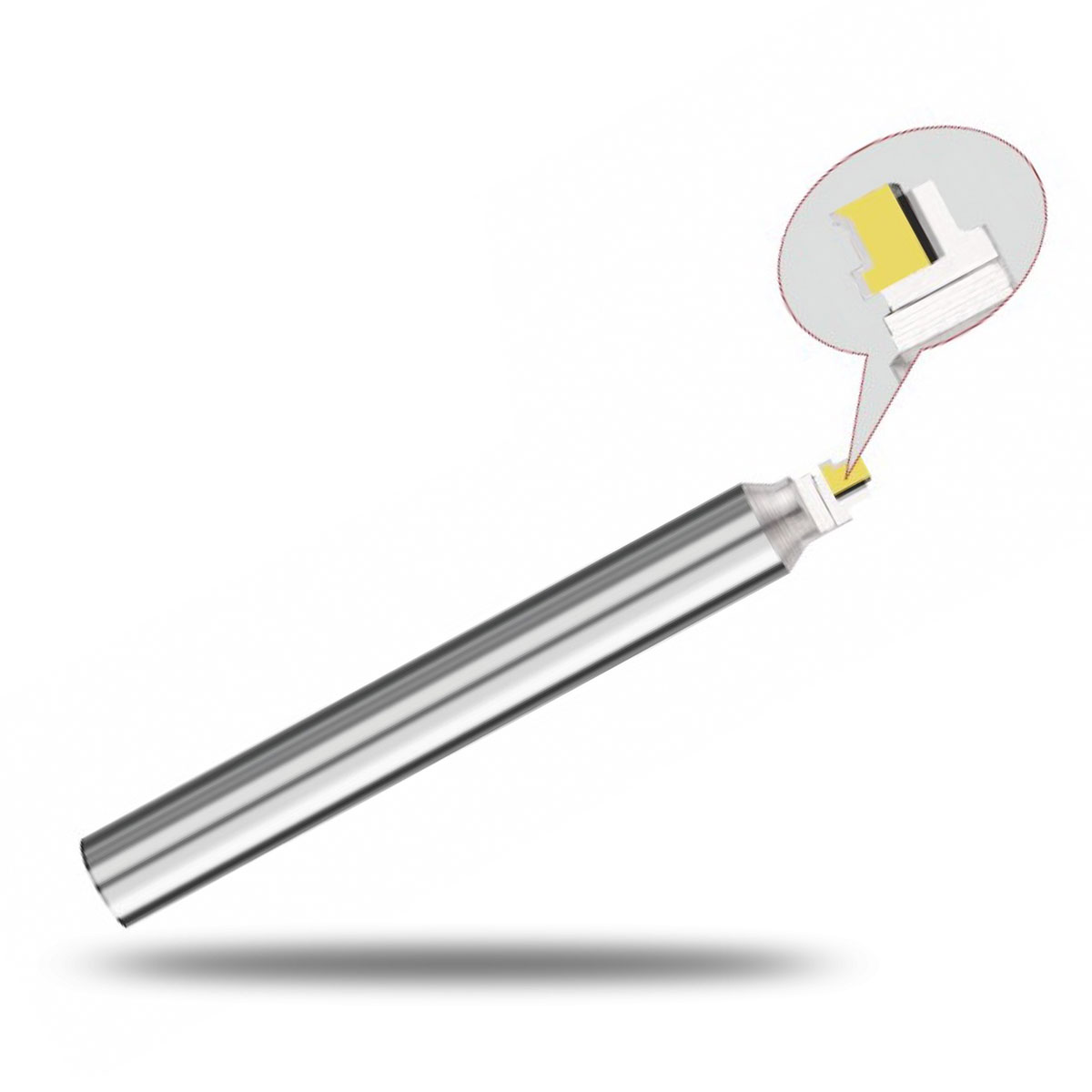

An MCD Forming Tool (Mono-Crystalline Diamond Forming Tool) is a specialized cutting instrument designed for simultaneously machining complex contours, profiles, and multi-feature geometries in a single pass. Unlike standard end mills, these tools replicate custom shapes with sub-micron accuracy, delivering optical-quality finishes without secondary operations.

Equipped with a talented bunch of technical experts, Asime is able to provide custom made drawings of the precision manufacturing tool. After noting down all the client’s requirements, application and material to cut, we will design a detailed drawing of the cutting tool.



We take great care in our manufacturing processes.

We are always following DOE and ISO standards, ensuring that our tools and services are nothing short of world class.

CONTACT US NOW
Add to quote
Category: Tag:

Description

MCD Forming Tool Primary Uses

Optics

  • Machining aspheric lens molds, laser reflector profiles

Medical

  • Forming orthopedic implant curves, dental abutment geometries

Automotive

  • Producing fuel injector nozzles, valve seat profiles

Electronics

  • Creating micro-connector housings, waveguide channels

Processing Materials and Applications

Application: Mobile phone camera, camera lens, ultra-high precision and mirror processing.
Processing Materials: Aluminium alloy, copper, plastic and other non-ferrous metals and non-metals.

Custom MCD Diamond Tools Made Simple

Drawings or none? We precision-craft. Guaranteed.

Inquire Now

MCD (Mono-Crystalline Diamond) Tools: The Ultimate Solution for Superior Mirror Machining

Unmatched Precision & Finish

MCD diamond tools deliver true mirror-like surface finishes, effortlessly achieving sub-micron workpiece accuracy and nanometer-level surface roughness (extremely low Ra values).

Exceptional Cutting Performance

Machined surfaces exhibit outstanding gloss and uniformity, resulting in a brilliant, mirror-bright finish that significantly enhances product aesthetics and functional performance.

The Benchmark for Ultra-Precision

Leveraging diamond's supreme hardness, wear resistance, and sharp cutting edge, MCD tools are globally recognized as the ideal and reliable choice for achieving the highest quality ultra-precision machining.
