MCD Combination Tools: Multi-Op Precision in One Tool

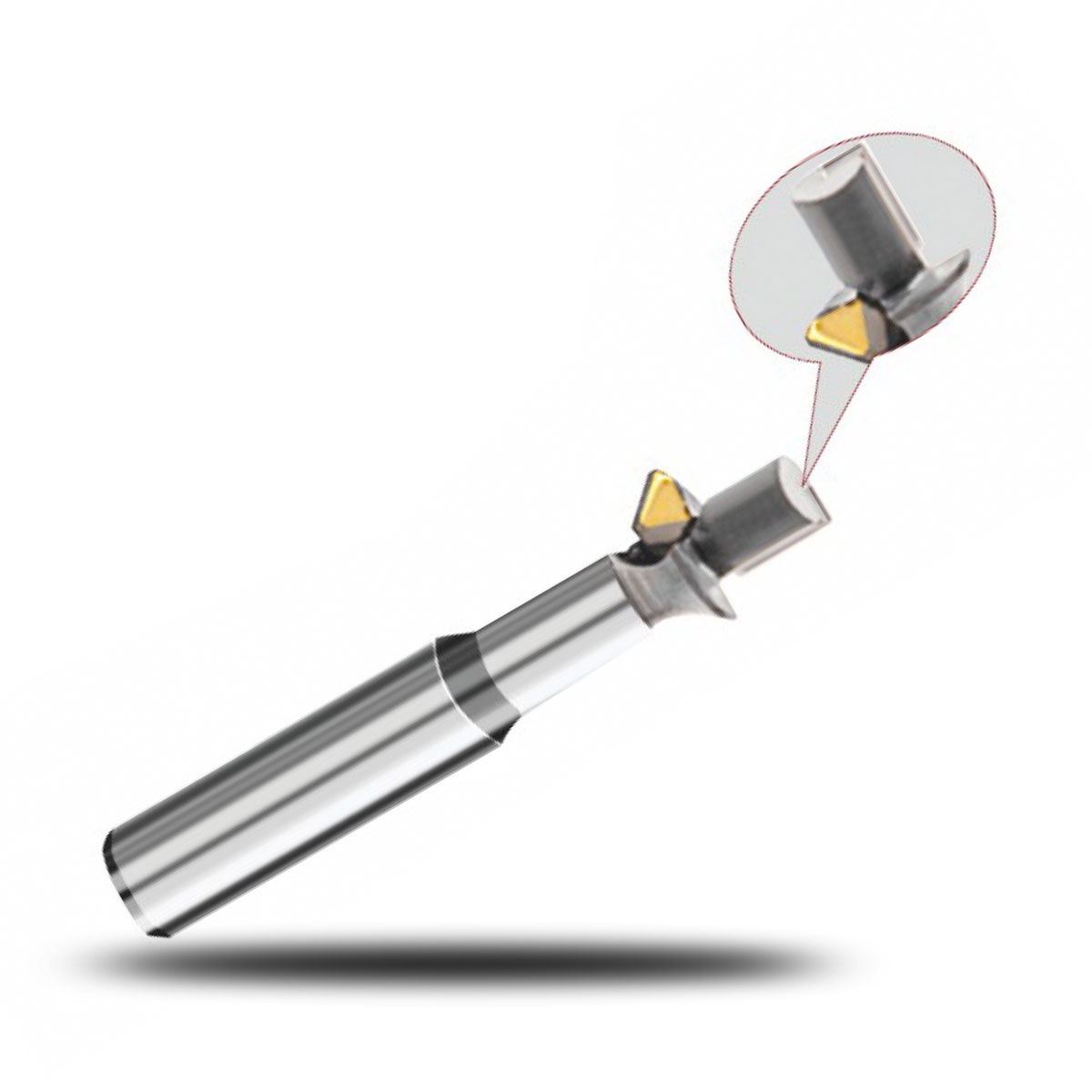

MCD Combination Tool

An MCD Combination Tool (Mono-Crystalline Diamond Combination Tool) is a precision-engineered, multi-functional cutting instrument that integrates two or more distinct machining operations into a single MCD tool. Designed to perform sequential tasks (e.g., drilling + chamfering, milling + threading) in one pass, it eliminates tool changes, reduces cycle times by 50–70%, and guarantees micron-level alignment between features.

Equipped with a talented bunch of technical experts, Asime is able to provide custom made drawings of the precision manufacturing tool. After noting down all the client’s requirements, application and material to cut, we will design a detailed drawing of the cutting tool.

We take great care in our manufacturing processes.

We are always following DOE and ISO standards, ensuring that our tools and services are nothing short of world class.

CONTACT US NOW

Description

MCD Combination Tool Primary Uses

Medical Industry

Spinal screws | Drill hole + cut threads + chamfer edges

Automotive Industry

Fuel injector nozzles | Micro-drilling + taper forming + seat finishing

Electronics Industry

RF connector pins | Turn OD + groove + engrave ID markings

Aerospace Industry

Turbine blade cooling holes | Drill + counterbore + edge break

Why Choose MCD Combination Tool?

For complex components requiring multiple precision features – like medical screws needing threaded holes + biocompatible edges, or injector nozzles demanding tapered orifices + sealing surfaces – MCD combination tools deliver perfectly aligned geometries, nanometer finishes, and 60% faster cycles by replacing 3+ tools with one diamond solution. No repositioning, no cumulative errors.

Processing Materials and Applications

Applications: High-gloass, ultra-high precision and mirror processing of mobile phone middle frame.
Processing Materials: Aluminium alloy, copper, plastic and other non-ferrous metals and non-metals.

Custom MCD Diamond Tools Made Simple

Drawings or none? We precision-craft. Guaranteed.

Inquire Now

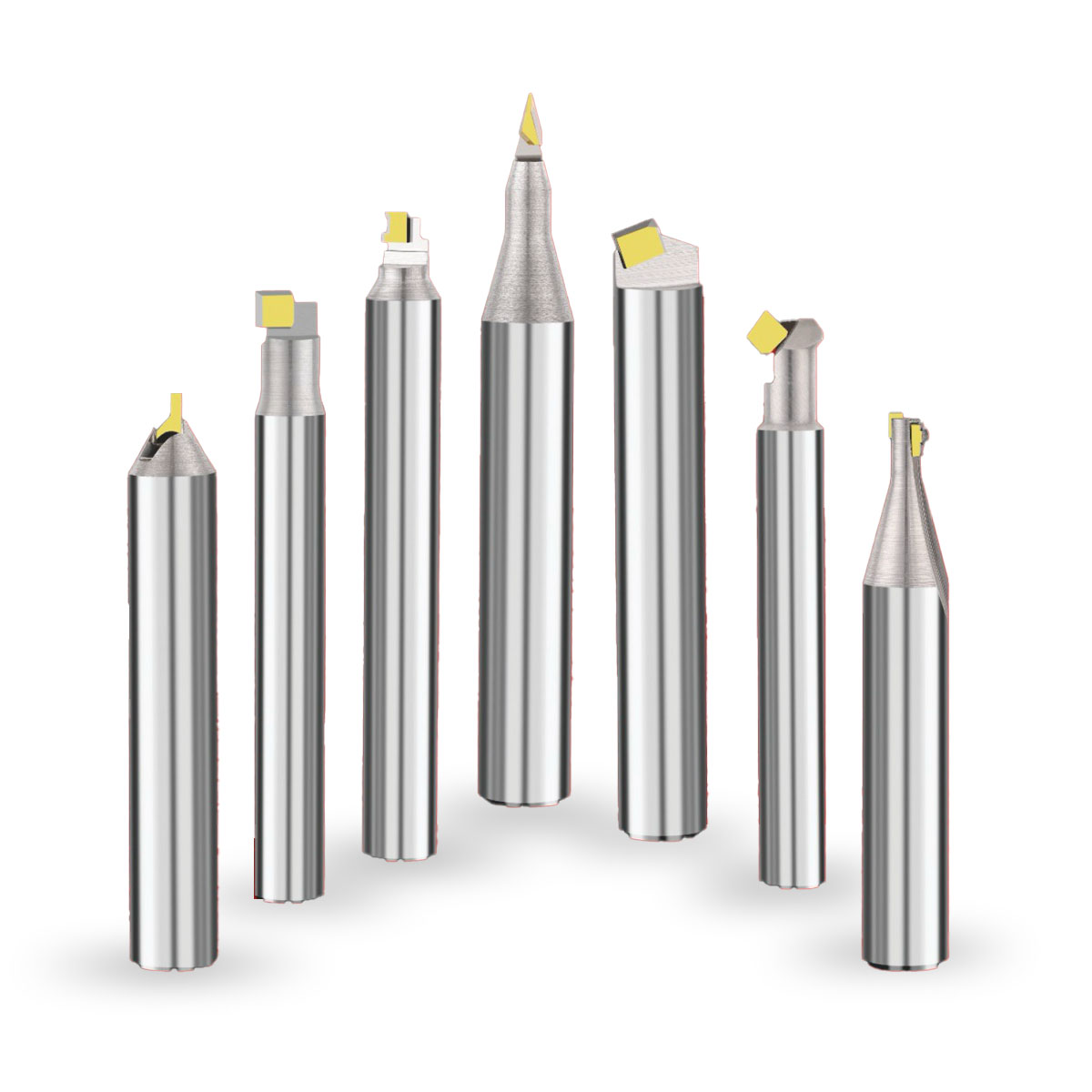

MCD (Mono-Crystalline Diamond) Tools: The Ultimate Solution for Superior Mirror Machining

Unmatched Precision & Finish

MCD diamond tools deliver true mirror-like surface finishes, effortlessly achieving sub-micron workpiece accuracy and nanometer-level surface roughness (extremely low Ra values).

Exceptional Cutting Performance

Machined surfaces exhibit outstanding gloss and uniformity, resulting in a brilliant, mirror-bright finish that significantly enhances product aesthetics and functional performance.

The Benchmark for Ultra-Precision

Leveraging diamond's supreme hardness, wear resistance, and sharp cutting edge, MCD tools are globally recognized as the ideal and reliable choice for achieving the highest quality ultra-precision machining.
